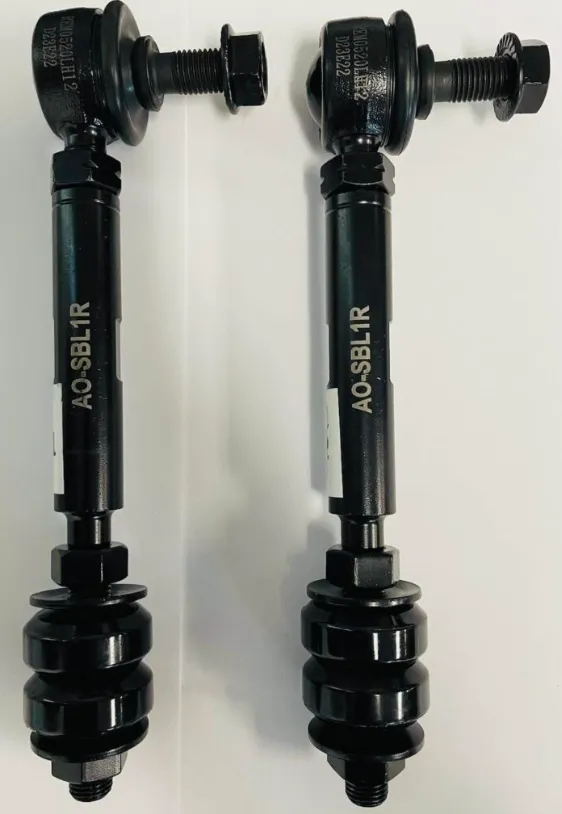

The Apache Offroad HD adjustable sway bar links were engineered to create a strong link between your sway bar and frame, as well as, correct your sway bar alignment post lift install. Over the years we have noticed that some customers have broken the studs in their links, causing potentially catastrophic failure to other components on the vehicle. Thus leading to the creation of our HD chromoly link set.
By positioning the sway bar to run parallel with the lower link (trailing arm,) you are able to maximize travel and handling of your vehicle.
- Adjustable (on vehicle) from 165mm – 206mm – Suits standard and long travel rear lifts
- Custom Forged Oversized (22mm ball) Chromoly Rod End / Joints
- Premium Silicone Dust Boots
- High Carbon Steel Center Link
- Black EDP Coating for corrosion resistance
- High Quality Polyurethane Bushings on frame side
- Serrated Oval / Distorted Thread Locking Nut – The factory sway bar material expands and contracts as you drive, thus causing the nut to come loose and the sway bar link to disconnect. This is not ideal. This style nut, is the best solution we have found to the issue, though we do still recommend the use of thread locker at install.

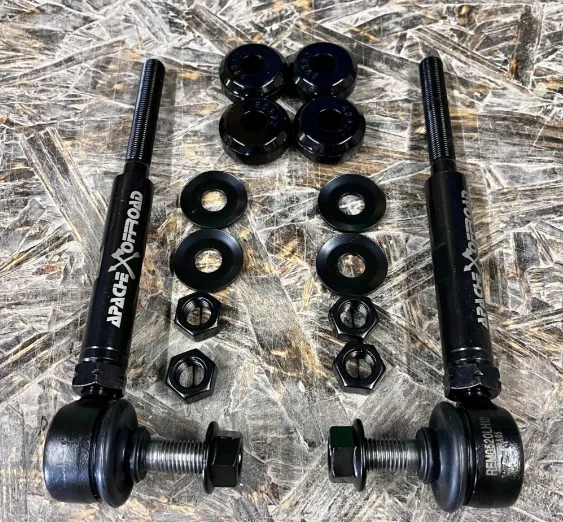

- Mounting hardware included
- Rod end machined to accept hex key to prevent the rod end from spinning during installation. Other brands come with a nut on the inner side of the shaft, which is harder to use and more likely to cause you to tear the boot upon installation.
- Sold as a pair
- Maintenance Free Design.
- 2 year unlimited mile warranty
Note- If you lose a nut- the frame side is size m12x1.25 and the stud / sway bar side is size is m12x1.5 / The locking nut going into the center link is 1/2″-20
Torque specs: We recommend using factory torque specs
Fitment:
- KDSS Equipped 4Runners and GX460s – KDSS Doesn’t utilize sway bar links. If KDSS has been deleted from your vehicle, a front sway bar can be easily mounted, the rear will require custom bracketry to be made. You will only need sway bar links though on non KDSS trucks utilizing a sway bar.
2003 4Runner (Non KDSS) / KDSS- See Note Above
2007-2014 Toyota FJ Cruiser
2003-2009 Lexus GX470 (Non KDSS) / KDSS – See Note Above
2010 Lexus GX460 – See Note Above
Installation Help:

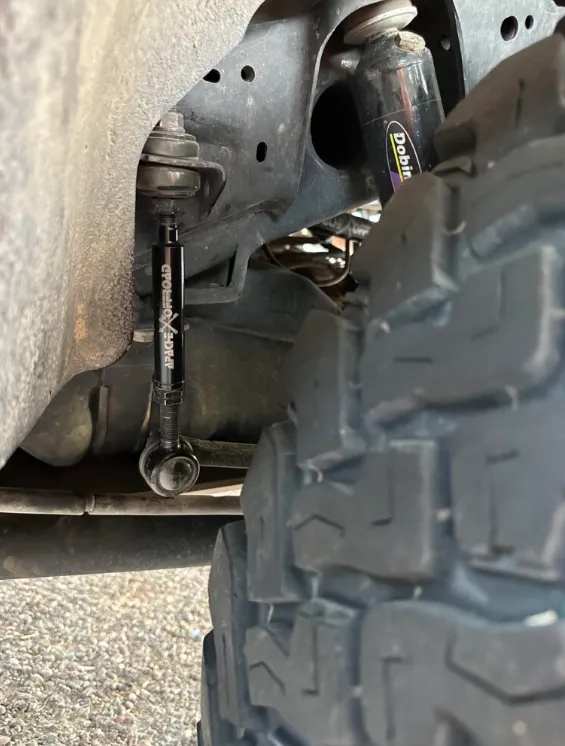

Installation is quite simple. Remove the factory sway bar link, and install the Apache link. With the vehicle on the ground, at ride height, Adjust the sway bar link until the angle of the sway bar is running in parallel with the lower trailing arm (link.) You also want your sway bar end ball stud to stick out straight. When installed correctly the link should not look like its being pulled to the rear. Be sure to tighten both upper locking nuts as well as the rod end locking nut against the center link. Apply thread locker to nuts and torque to factory spec.
